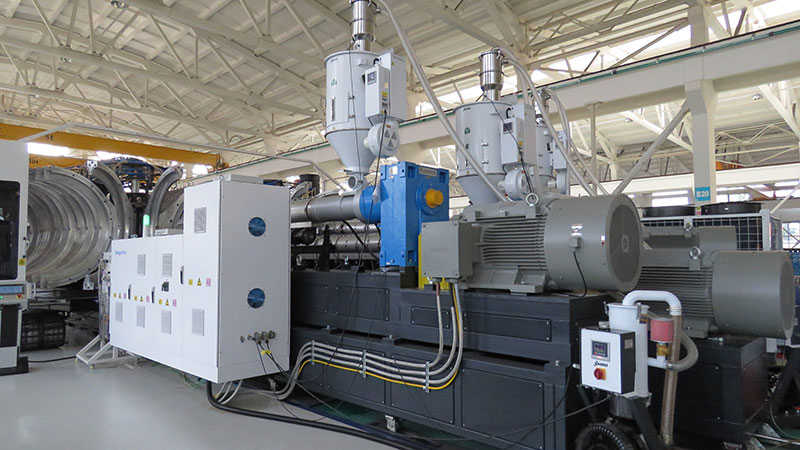

Single Screw Extruder

• Automatic feeding, alarming when lacking of material;
• The hopper combines functions of drying and storing, automatic temperature control with intelligent display;
• Extruder screw and barrel are hardened for better wear resistance, increased durability and longer life span;
• High-efficiency shield-style screw features a special blends melding section, significantly improving the plasticizing efficiency and output;
• PCC control system, PID temperature control, enabling the temperature to be precisely controlled at ±1°C;
• Fully automatic running of the entire extrusion line;

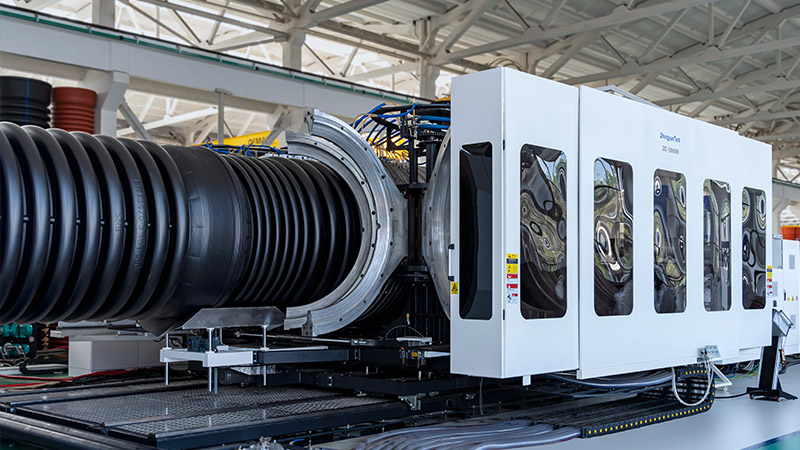

Pipe Corrugator, Model ZC-2000H

• Utilizing water cooled mould blocks, the speed of pipe corrugator is greatly improved; The maximum speed reaches 0.998m/min;
• High efficiency vacuum system ensures optimal pipe forms;
• Mould block temperature control system assists in further optimizing the quality of corrugated pipes;
• Quick and easy mould changeover, efficiently shortening the downtime;
• Synchronous operation with other equipment such as extruders;
• Moulds are compatible to ZC-1000H and ZC-1200H extrusion lines;

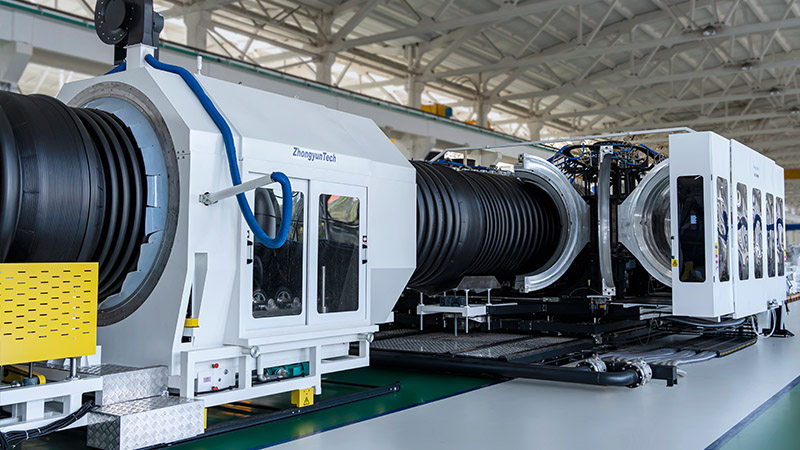

Spray Cooling Bath, Model 2000

• Haul-off unit is fitted at the end of the cooling tank, ensuring the corrugated pipes are stably conveyed into cutting machine;
• Blow off system is equipped to thoroughly remove the residual water from the surface of corrugated pipes;

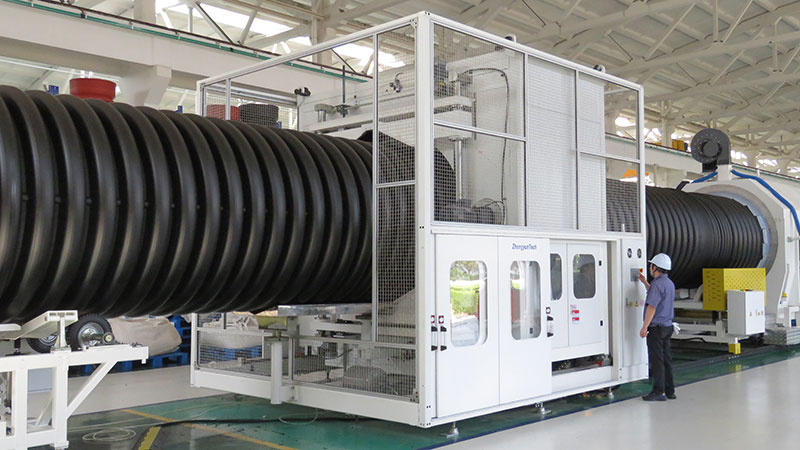

Automatic Sawdust-free Cutting Machine, Model 2000

• Swarfless cutting, hydraulically-fed cutting knife ensures precise and burr-free cutting of pipes;
• Auxiliary inspection mechanism allows the cutting knife to be precisely positioned;

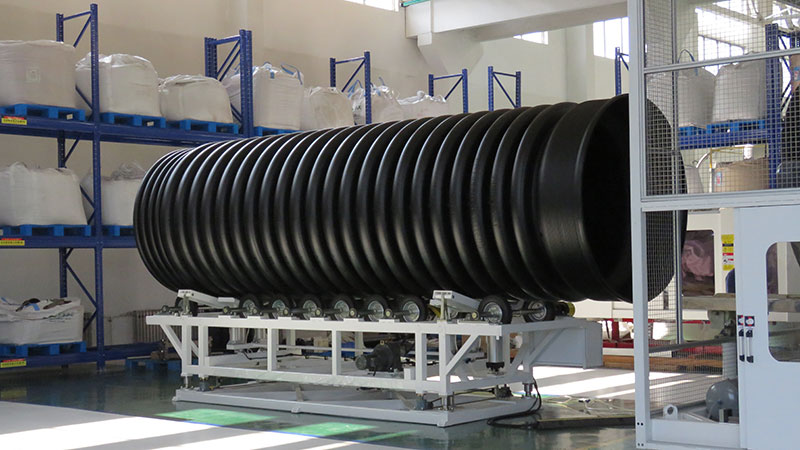

Pipe Unloading Device (Tilting Table), Model 2000

• The height of tilting table is adjustable electrically, providing ease of operation;
• Equipped with automatic pipe weighing system;
