ZC-1500H Corrugated Pipe Extrusion Line

(ID300-OD1500mm)

Designed to produce double wall corrugated pipes ranging from ID300mm to OD1500mm, ZC-1500H corrugated pipe production line uses pressured water cooling method to increase the production speed while lowering power consumption, therefore leading to higher productivity and less production cost. Typical materials run on this corrugated pipe line will be HDPE and PP.

ZC-1200H Corrugated Pipe Extrusion Line
  • Min. pipe ID 300mm
  • Max. pipe OD 1500mm
  • Total installation power 1050kw
  • Normal working power 504kw
  • Max. production speed 3.0m/min
  • Max. output 1300kg/hr
  • Overall dimension(L×W×H) 47m×6.5m×4.5m
Request a Quote
Components of Corrugated Pipe Extrusion Line

Our corrugated pipe extrusion line is mainly composed of extruder, corrugator, cooling bath, cutting machine and unloading device (tilting table).

    • Single Screw Extruder (Model SJPE-120/33B)
      1 set
    • Single Screw Extruder (Model SJPE-150/33B)
      1 set
    • Pipe Corrugator (Model ZC-1500H)
      1 set
    • Spray Cooling Bath (Model 1500)
      1 set
    • Automatic Sawdust-free Cutting Machine (Model 1500)
      1 set
    • Unloading Device with Weighing System (Model 1500)
      1 set
Layout of Corrugated Pipe Extrusion Line
Layout of Corrugated Pipe Extrusion Line
Features of Extrusion Line Equipment

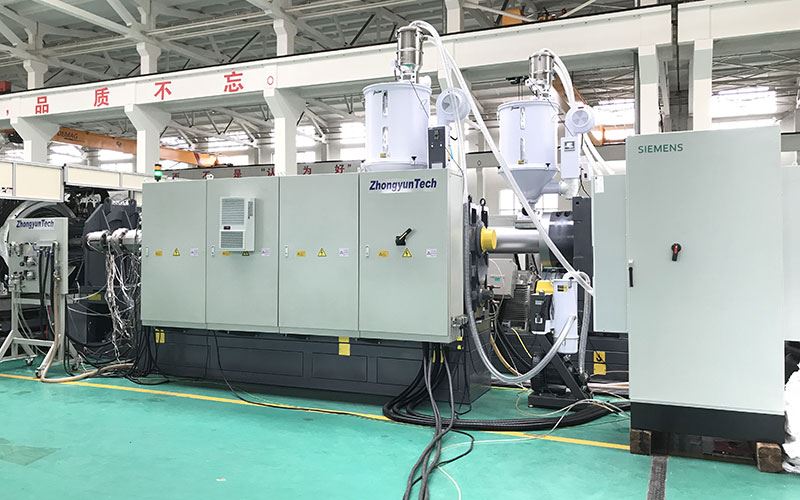

Single Screw Extruder

Single Screw Extruder

  • Automatic feeding, alarming when lacking of material;
  • The hopper combines functions of drying and storing, automatic temperature control with intelligent display;
  • Extruder screw and barrel are hardened for better wear resistance, increased durability and longer life span;
  • High-efficiency shield-style screw features a special blends melding section, significantly improving the plasticizing efficiency and output;
  • PCC control system, PID temperature control, enabling the temperature to be precisely controlled at ±1°C;
  • Fully automatic running of the entire extrusion line;

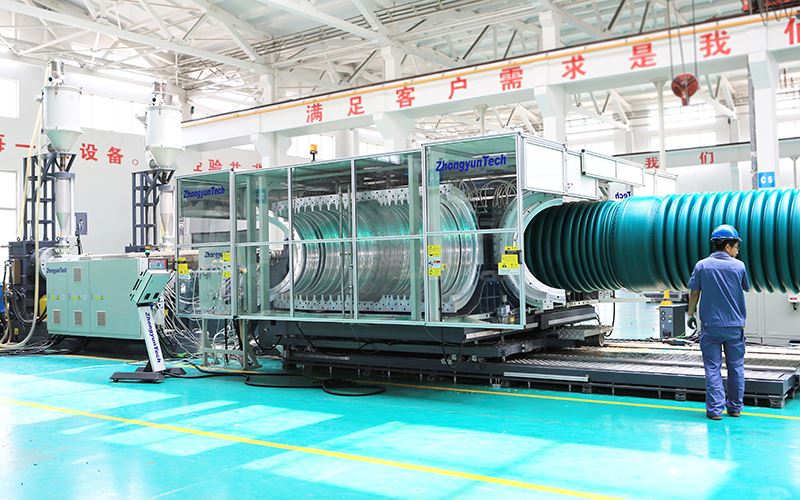

Pipe Corrugator, Model ZC-1500H

Pipe Corrugator, Model ZC-1500H

  • Utilizing water cooled mould blocks, the speed of pipe corrugator is greatly improved; The maximum speed reaches 3.0m/min;
  • High efficiency vacuum system ensures optimal pipe forms;
  • Mould block temperature control system assists in further optimizing the quality of corrugated pipes;
  • Quick and easy mould changeover, efficiently shortening the downtime;
  • Synchronous operation with other equipment such as extruders;
  • Moulds are compatible to ZC-600H, ZC-1000H, ZC-1200H and ZC-2000H extrusion lines;

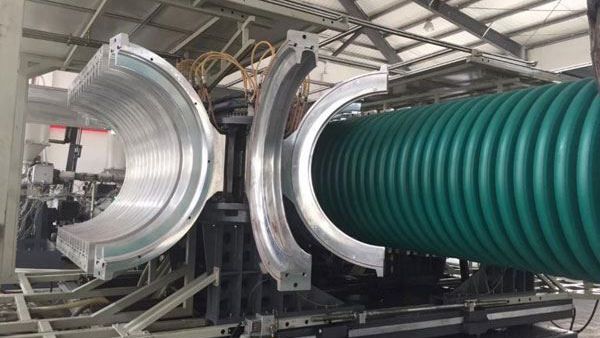

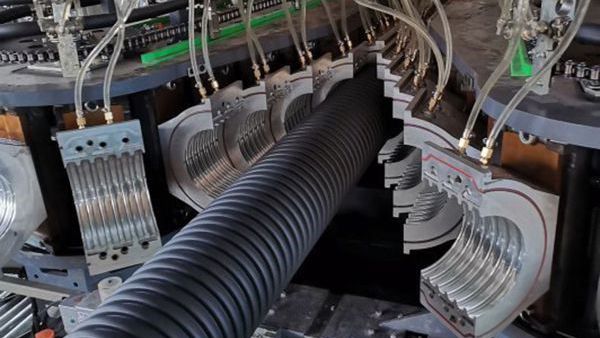

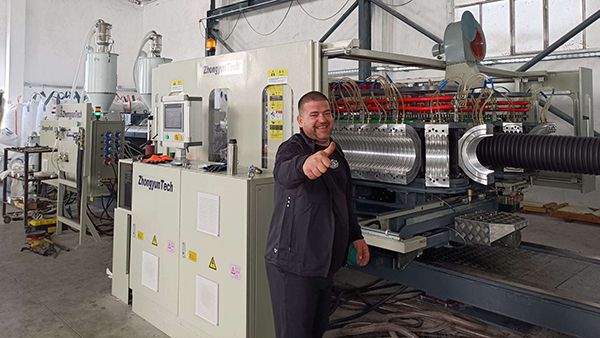

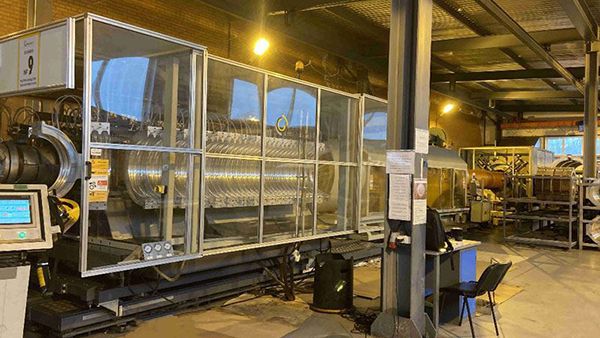

Case Studies
