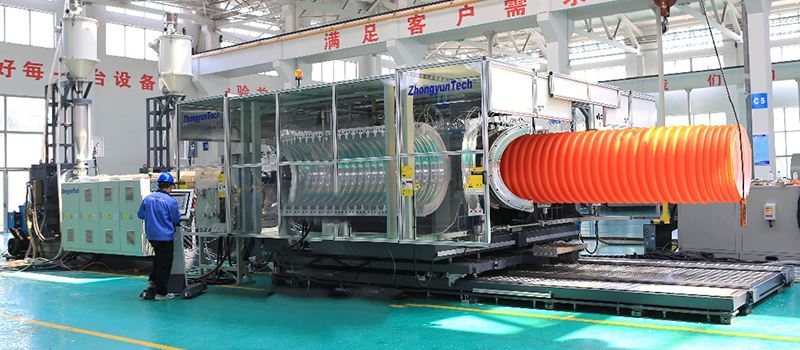

Corrugated Pipe Extrusion Line
Based on our over 20 years experience and professional expertise in the field of corrugated pipe machinery, ZhongyunTech offers corrugated pipe machines for OD40mm to OD2400mm, from small cable conduits to large sewage pipes.
-
- ZC-180H high-speed extrusion line is typically designed for manufacturing HDPE/PP/PVC double wall corrugated pipes ranging from OD40mm to OD200mm, with a maximum speed of 26.6m/min. The produced corrugated pipes can be utilized as protection conduits for telecom cables and electricity cables, as well as drainage pipes for streets, factory, squares, golf course and sports field.
-
- ZC-300H is a complete corrugated pipe production line that adopts pressured water cooling method for mould blocks, which helps increase the production speed while lowering power consumption thereby resulting in a better productivity and lower costs for customers. This corrugated pipe extrusion line is quite suitable for manufacturers who produce cable protection conduits, heating system protecting tubes, drainage pipes and stormwater pipes.
-
- ZC-600H corrugated pipe extrusion line is designed for manufacturing corrugated pipes ranging from ID90mm to OD750mm, which have extensive applications of cable conduits and drainage pipes, as well as protection pipes of heating systems. This corrugated pipe production line allows quick and easy mould changeover by simply loosening only one screw, leading to a shorter downtime for changeover.
-
- ZC-1000H corrugated pipe extrusion line is a versatile solution to produce HDPE/PP corrugated pipes with a wide diameter scope, from ID100mm to OD1000mm. A sophisticated mould block temperature control system is used to ensure both the quality and appearance of corrugated pipes, which are typically suitable for sewage pipes, fluid transmission and civil construction applications.
-
- Designed to produce double wall corrugated pipes ranging from ID100mm to OD1200mm, ZC-1200H extrusion line uses pressured water cooling method to increase the production speed while lowering power consumption, therefore leading to a better productivity and less production cost. Typical materials run on this corrugated pipe line will be HDPE and PP.
-
- Designed to produce double wall corrugated pipes ranging from ID300mm to OD1500mm, ZC-1500H corrugated pipe production line uses pressured water cooling method to increase the production speed while lowering power consumption, therefore leading to higher productivity and less production cost. Typical materials run on this corrugated pipe line will be HDPE and PP.
-
- ZC-2000H extrusion line can produce high-quality HDPE and PP double wall corrugated pipes which are widely used in stormwater, drainage, infrastructure and civil engineering applications. The maximum outer diameter of the corrugated pipe can reach 2000mm. This line achieves fully automatic pipe production, with the maximum speed of 0.998m/min.
