ZC-2000H Pipe Corrugators

(ID600-OD2000mm)

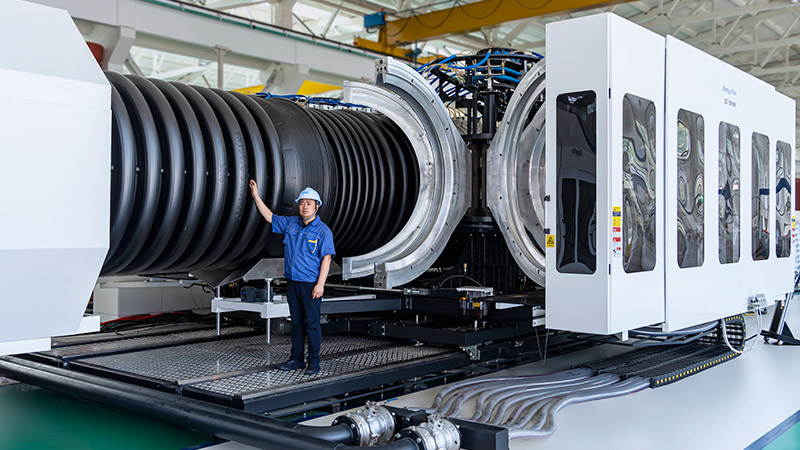

The ZC-2000H pipe corrugator can form and produce high quality HDPE and PP double wall corrugated pipes, which are frequently found in applications for stormwater management, drainage, infrastructure, and civil engineering. The corrugated pipe can have an outside diameter as large as 2000mm. This ZC-2000H corrugated pipe forming machine is fully automatic, achieving the maximum speed of 0.998 meters per minute.

ZC-2000H Pipe Corrugators
  • Min.ID 600mm
  • Max. OD 2000mm
  • Max. speed 0.998m/min
  • Max. output 1800kg/h
  • Drive power 15kw
  • Center height 1900mm
  • Length 7140mm
  • Width 7400mm
  • Recycling water required >0.7m³/min
Request a Quote
Applications of Corrugated Pipes
  • Stormwater and sewage pipes
  • Drainage pipes for fields, streets, plazas and buildings
  • Infrastructure and civil engineering pipelines
  • Transmission pipelines
Features of Pipe Corrugator
High Productivity, Low Cost

High Productivity, Low Cost

  • Mould blocks are continuously cooled using a pressurized water jacketing method to maximize the cooling efficiency, thus greatly increasing the production speed while lowering the cost of pipe production.
  • In the entire mold block path, mould blocks are cooled in a continuous operation by passing chilled water through the jacket.
More Flexible Manufacturing

More Flexible Manufacturing

Improved Machine Usage and Productivity
Mould blocks and die heads are compatible to different models of pipe corrugators, providing great flexibility of pipe production while enormously improving machine usage and productivity, as well as saving investment costs.

Faster Mould Changeover

Faster Mould Changeover

Shortened Downtime and Higher Production Efficiency

  • Exceptional mould block assembly technology minimizes the steps of mould changing and helps user efficiently shorten the downtime and increase the production efficiency.
  • The latest design of non-platform structure allows operator to change moulds block faster and easier, eliminating the need for adjusting the height of pipe corrugator.
Stable Running, High Durability

Stable Running, High Durability

  • High precision and stable operation of corrugated pipe machine is based on our optimized design of mechanical structure.
  • All parts of corrugated pipe machine are manufactured to exceptionally high precision by utilizing world's advanced machine tools.
  • Advanced quality inspection, measuring and testing devices are used to ensure our products are made to high international standards. corrugator.
Higher Quality of Finished Corrugated Pipe

Higher Quality of Finished Corrugated Pipe

  • Mould block temperature control technology assists users in production of premium quality corrugated pipes with superior look.
  • Mature vacuum forming technology coupling with our double-layer cuff production process which is exclusive within the industry ensures that inner layer and outer layer are perfectly matched.
More Efficient Use of Raw Materials

More Efficient Use of Raw Materials

More Efficient Use of Raw Materials (Low Pipe Weight/Meter)
For the past 20 years, ZhongyunTech has executed installation of more than 700 corrugated pipe extrusion lines around the world. We have always been to get to know market needs and listening to customer's requirements intimately, and we continuously improve our products and service to ensure our customers are able to produce high-quality corrugated pipes with lower manufacturing costs.
