Pipe Corrugators

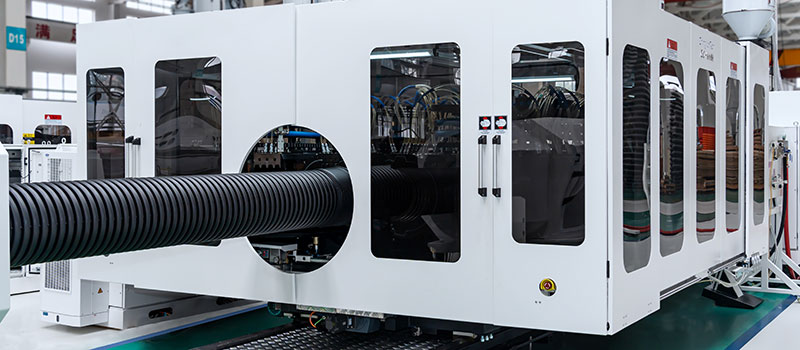

ZhongyunTech corrugators adopt water cooled mould blocks, providing high pipe production speed. Mould block temperature control system assists in further optimizing the quality of corrugated pipes.
-
- With a top speed of 26.6 m/min, the ZC-180H pipe corrugator is primarily made for producing HDPE/PP/PVC double wall corrugated pipes with an outer diameter of up to 200 mm. The corrugated pipes that are made can be used as drainage pipes for streets, factories, squares, golf courses, and sports fields as well as protection conduits for telecom and energy cables.
-
- The ZC-300H pipe corrugator uses pressurized water cooling for the mold blocks. This cooling method helps to enhance production speed while reducing power consumption, improving productivity and saving costs. This ZC-300H corrugated pipe making machine is suitable for manufacturers of cable protection conduits, heating system protection tubes, drainage pipes, and stormwater pipes.
-
- The ZC-600H pipe corrugator is intended for the production of corrugated pipes with sizes ranging from 90 inner diameter to 750 outer diameter, which can be widely used as cable conduits, drainage pipes, and heating system protection pipes. By just loosing one screw, this corrugated pipe machine enables quick and easy mould changeover, increasing production efficiency.
-
- The ZC-1000H pipe corrugator is used to produce HDPE/PP corrugated pipes with a wide range of diameters, from 100 inner diameter to 1000mm outer diameter. Corrugated pipes are appropriate for sewage, pipes, fluid transmission, and civil construction applications. A sophisticated mould block temperature control system is employed to ensure both the quality and appearance of these pipes.
-
- The ZC-1200H pipe corrugator employs pressurized water cooling method to increase production speed while reducing power consumption, resulting in better productivity and lower production costs. It is designed to produce double wall corrugated pipes with an outer diameter up to 1200mm. HDPE and PP are the typical materials used on this corrugated pipe making machine.
-
- The ZC-1500H pipe corrugator employs pressurized water cooling method to increase production speed while reducing power consumption, resulting in better productivity and lower production costs. It is designed to produce double wall corrugated pipes with an outer diameter up to 1500mm. HDPE and PP are the typical materials used on this corrugated pipe making machine.
-
- The ZC-2000H pipe corrugator can form and produce high quality HDPE and PP double wall corrugated pipes, which are frequently found in applications for stormwater management, drainage, infrastructure, and civil engineering. The corrugated pipe can have an outside diameter as large as 2000mm. This ZC-2000H corrugated pipe forming machine is fully automatic, achieving the maximum speed of 0.998 meters per minute.
